Bộ Thu giải mã tích hợp IRD 16 Tuner

Bộ Thu giải mã tích hợp IRD 16 Tuner

VTAT3394 -16 thiết bị thu giải mã tích hợp IRD, hỗ trợ IPTV, đầu vào DVB-C / T / (T) / ISDBT / S / S2 / S2X, ASI, 4 IP UDP, CI CAM, đầu ra 48 SPTS và 4*MPTS over UDP, RTP/RTSP.

Tính năng chính:

Bộ thu giải mã tích hợp (Integrated receiver/decoder – IRD) VTAT3394 -16

–       4 đầu vào Tuner (tùy chọn DVB-C / T / (T) / ISDBT / S / S2 / S2X)

–       1 đầu vào ASI & 4 IP (UDP)

–       CAM có thể giải mã nhiều chương trình từ Tuners / ASI / IP

–       Hỗ trợ giải mã BISS (Lên đến 120 Mbps)

–       IP (48 SPTS, 4 MPTS) qua đầu ra UDP và RTP / RTSP;

–       4 nhóm ASI độc lập

–       Màn hình LCD, điều khiển từ xa và Firmware, quản lý web NMS



Giới thiệu sản phẩm:

Bộ Thu giải mã tích hợp IRD 16 Tuner IRD is new design which integrates demodulation (DVB-C, T/(T), ISDBT, S/S2/S2X), de-scrambler and multiplexing in one case to convert RF signals into TS output.

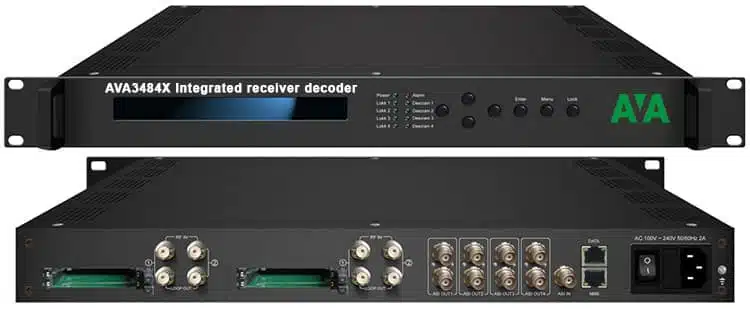

IRD AVA3484X with 1-U case which supports 4 tuner inputs, 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble programs from any input.

To meet customers’ various requirements, AVA3484X  is also designed to de-mux programs from any input, and output TS over 48 SPTS & 4 MPTS UDP, RTP/RTSP.

Các tính năng chính:

* 4 Tuner inputs (DVB-C/T/(T)/ISDBT/S/S2/S2X optional)

* 1 ASI & 4 IP (UDP) input

* One CAM can decrypt multiple programs from Tuners/ASI/IP

* Support BISS descrambling(Up to 120 Mbps)

* IP (48 SPTS, 4 MPTS) over UDP and RTP/RTSP output;

* 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)

* Support maximum 128 PID mapping per input

* Support Diseqc function

* LCD display, Remote control and Firmware, web NMS management

* Updates via web

* High quality and breakthrough price

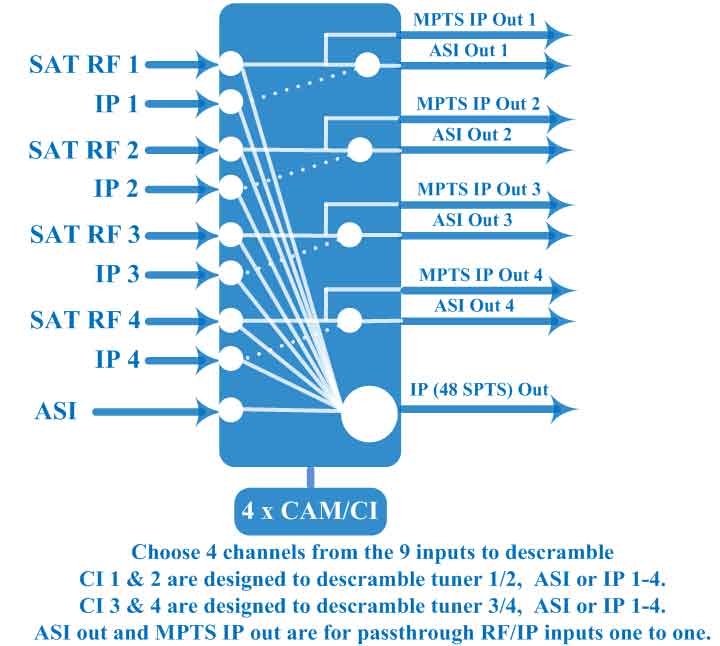

Biểu đồ nguyên tắc:

Thông số kỹ thuật:

Input	4* Tuner input (DVB-C, T/T2, ISDBT, S/S2/S2X optional), F type 1*ASI input for re-mux, BNC interface 4*IP input for bypass and de-mux (UDP)
Tuner Section	Multi-mode tuners switchable (New)	DVB-C	Input Frequency			60 ~890 MHz
			Standard			J.83A, J.83C	J.83B
			Constellation			16/32/64/128/256 QAM	64/256 QAM
		DVB-T/(T)	Input Frequency			60 ~890 MHz
			Bandwidth			6/7/8 M
		ISDB-T	Input Frequency			60 ~890 MHz
	Version 1	DVB-S	Input Frequency			950~2150MHz
			Symbol rate			1~45 Msps
			FEC			1/2, 2/3, 3/4, 5/6, 7/8
			Constellation			QPSK
			Signal Strength			– 65- -25dBm
			Max input bitrate			≤120 Mbps
		DVB-S2	Input Frequency			950~2150MHz
			Symbol rate			1~45 Msps
			FEC			1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
			Constellation			QPSK, 8PSK
			Max input bitrate			≤120 Mbps
	Version 2 (New)	DVB-S	Input Frequency			950~2150MHz
			Symbol rate			0.5~45Msps
			Signal Strength			– 65- -25dBm
			FEC			1/2, 2/3, 3/4, 5/6, 7/8
			Constellation			QPSK
			Max input bitrate			≤160 Mbps
		DVB-S2	Input Frequency			950~2150MHz
			Symbol rate			QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~40Msps;
			FEC			QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
			Constellation			QPSK, 8PSK, 16APSK, 32APSK
			Max input bitrate			≤160 Mbps
		DVB-S2X	Input Frequency			950~2150MHz
			Symbol rate			QPSK/8PSK /16APSK :0.5~45 Msps 8APSK: 0.5~40Msps 32APSK: 0.5~40Msps
			FEC			QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
			Constellation			QPSK, 8PSK, 8APSK, 16APSK, 32APSK
			Max input bitrate			≤160 Mbps
Descrambling		CAM/CI Quantity			4
		BISS Mode			Mode 1, Mode E (up to 120Mbps)
Output		48*SPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface (unicast/multicast) 4*MPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface, for RF in passthrough (one-to-one)
		4 groups BNC interface, for RF or IP in passthrough (one-to-one)
System		Local interface		LCD + control buttons
		Remote management		Web-server Management
		Language		English
		Upgrade		USB, web management
Miscellaneous		Dimension		482*300*44.5mm  (W×L×H)
		Approx weight		3.5kg
		Environment		0~45℃(work)；-20~80℃（Storage）
		Power requirements		100~240VAC, 50/60Hz
		Power consumption		20W
